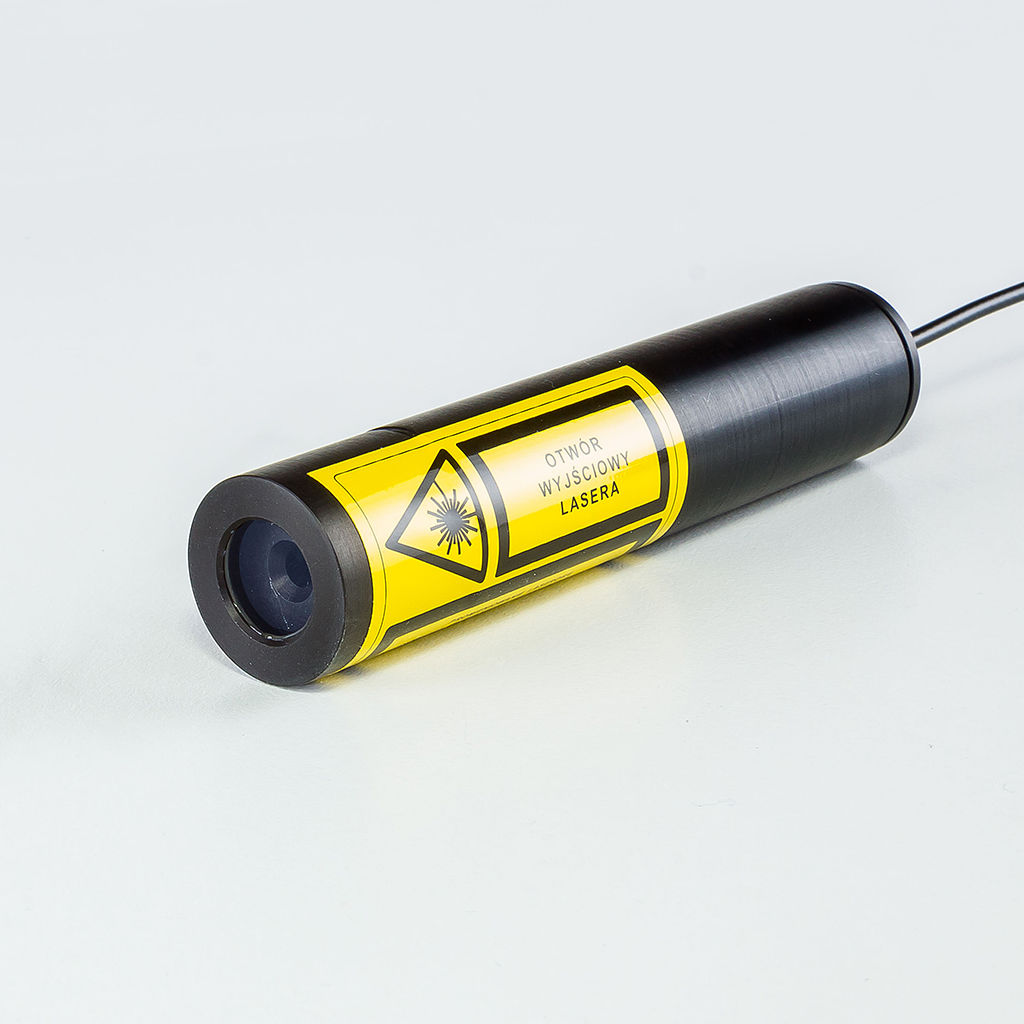

The ML-28PGL-520-40 green linear laser works well in applications related to the wood or stone industry:
Specification:
|
Safety class
|
3B according to PN-EN 60825-1: 2014 |
|
λ = 520 nm |
Output average power |
about 40 mW 2.7 V - 5.5 V power supply |
Current consumption |
approx. 500 mA |
The angle of the line generated |
approx. 90° |
Laser dimensions |
Φ 25mm x 120mm [mm] |
Aluminum housing color |
black |
IP rate |
IP65 |
Working temperature |
0° - 60°C |
Storage temperature |
-40° - +85°C |
Round power cable Ø4 mm; LiYY 2x0.34; the length of 2m pins |
Optical power | 40 [mW] |
Wave lenght | 520 [nm] |
Avaliability | 7-14 days |
Warranty | 24 months |
Safety class | 3B |
Laser beam color | Green |
Laser power supply | 2,7-5,5 VDC |
