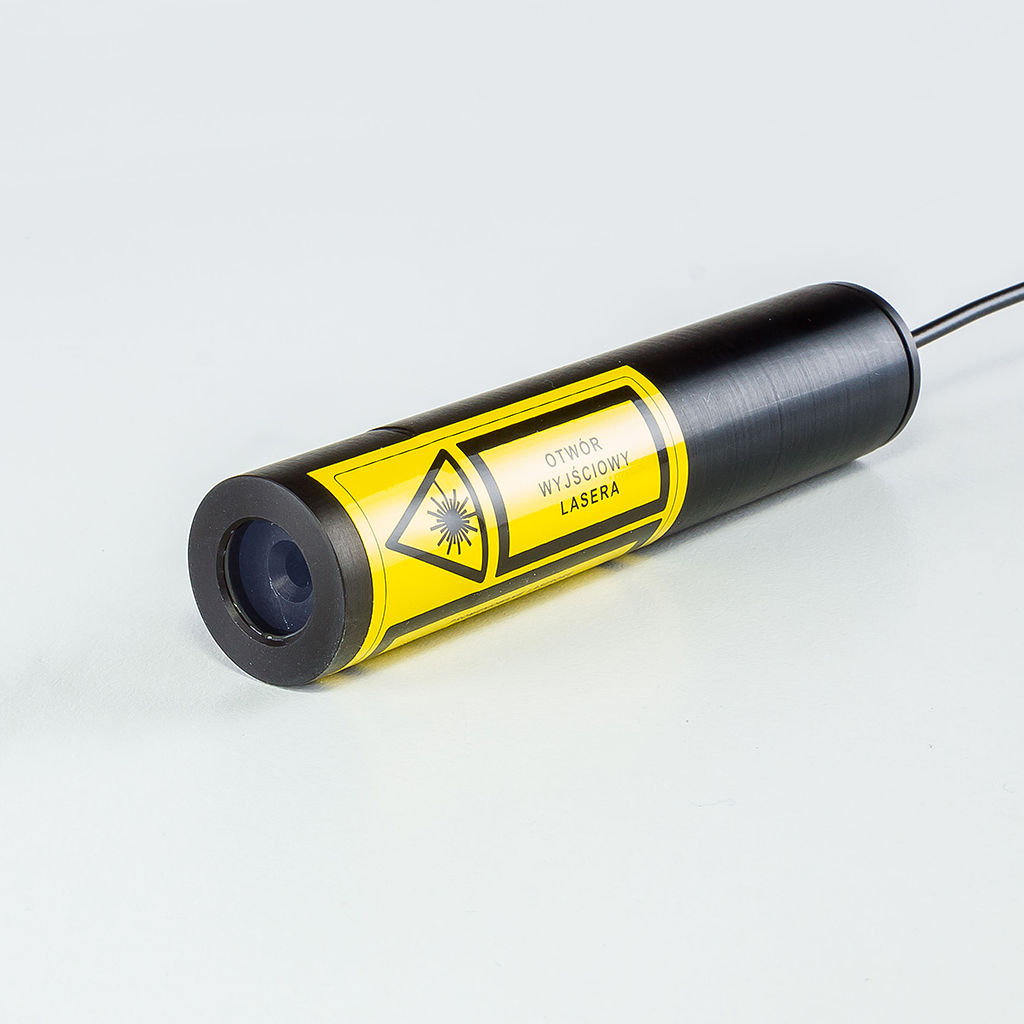

Line laser ML-28PGL-520-6with wide range of operating temperatures
Producer: SEMICON
Product code: ML-28PGL-520-6
Quantity [pcs.]: 0
Parametres: Optical power: 6 [mW], Wave lenght: 520 [nm], Avaliability: 7-14 days

Technical data sheet (TDS).pdf

Prices
Quantity [pcs.]
net
gross
Unit
1+
337,50 €
415,12 €
pcs.

- DESCRIPTION -

The ML-28PGL-520-6 green linear laser works well in applications related to the wood or stone industry:

  • circular saw, multi-blade saw
  • can be installed on various machines
  • cutting line indication
Specification:
Safety class

3B according to PN-EN 60825-1: 2014
Wavelength



λ = 520 nm
Output average power

about 6 mW
2.7 V - 5.5 V power supply
Current consumption


approx. 500 mA
The angle of the line generated

approx. 90°
Laser dimensions

 Φ 25mm x 120mm [mm]
Aluminum housing color

black
IP rate

IP65
Working temperature

0° - 60°C
Storage temperature

-40° - +85°C
Round power cable Ø4 mm; LiYY 2x0.34; the length of 2m pins

- SPECIFICATION -
Optical power 6 [mW]
Wave lenght 520 [nm]
Avaliability 7-14 days
Warranty 24 months
Line generating angle ~90o
Safety class 2M
Laser beam color Green
Laser power supply 2,7-5,5 VDC
International Protection Rating IP65
