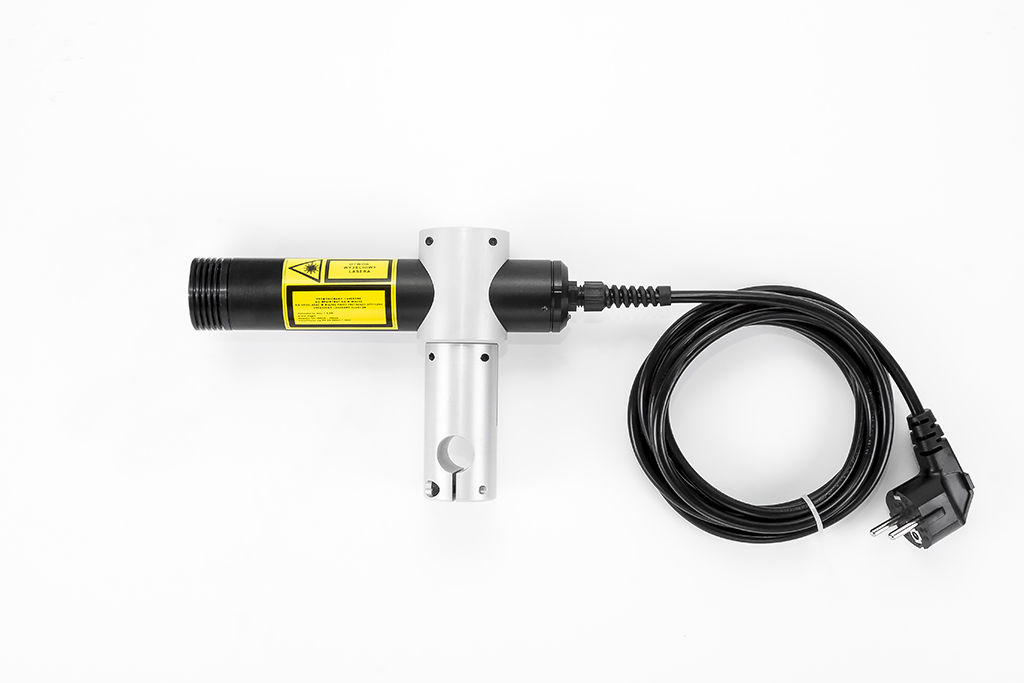

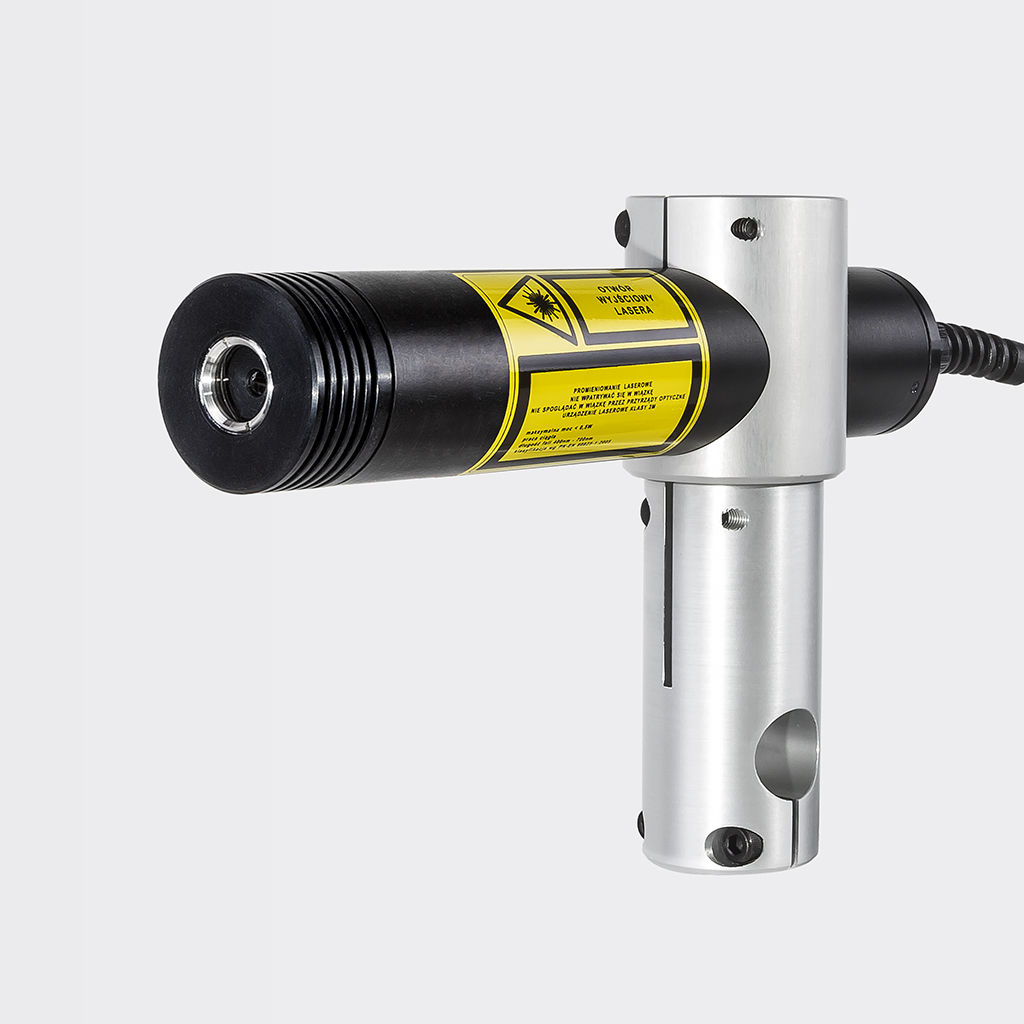

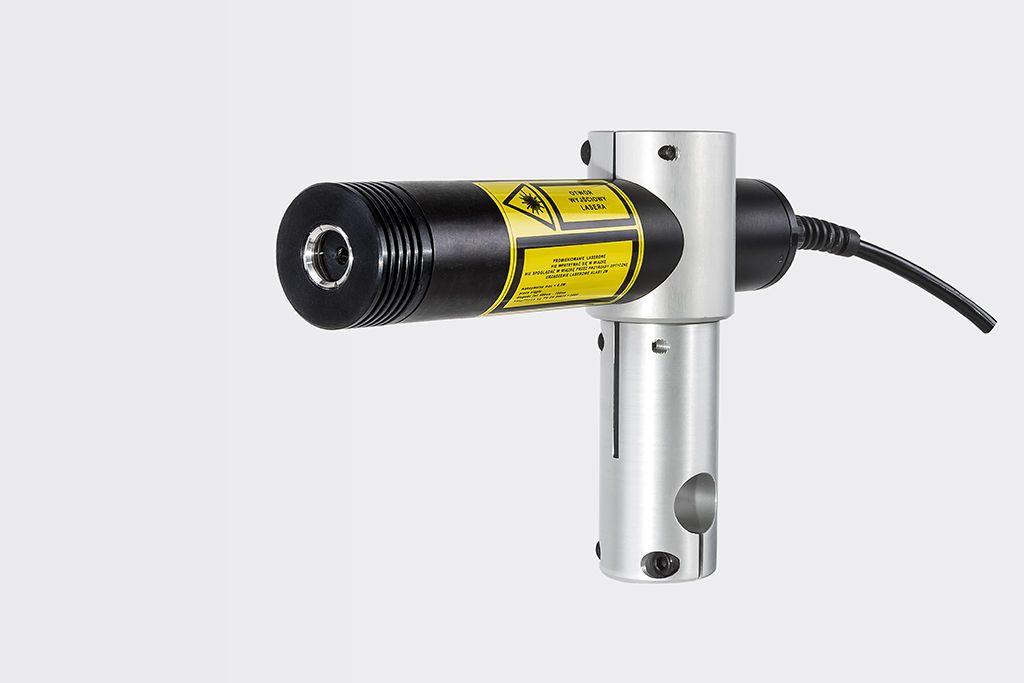

Red Line Laser Module ML-87PGL-635-15 with internal power supply
Producer: SEMICON
Product code: ML-87PGL-635-15
Quantity [pcs.]: 0
Parametres: Optical power: 15 [mW], Wave lenght: 635 [nm], Avaliability: 7-14 days

Technical data sheet (TDS).pdf

Prices
Quantity [pcs.]
net
gross
Unit
1+
375,00 €
461,25 €
pcs.

- DESCRIPTION -

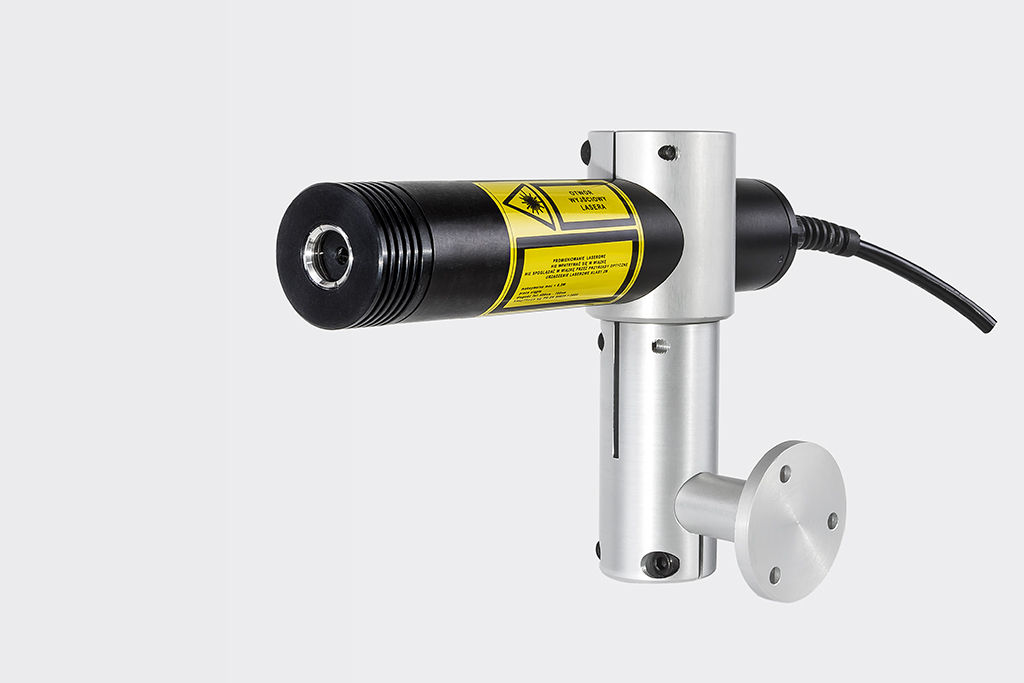

Red line laser ML-87PGL-635-15 is a laser diode that allows alignment adjustment. ML-87PGL-635-15 is fitted with a three-axis bracket and an internal power supply unit.

This laser module is perfect for applications in a wood industry and stonemasonry:

  • circular saw, multi-blade saw
  • can be installed on various machines
  • cutting line indication



Assembly methods:

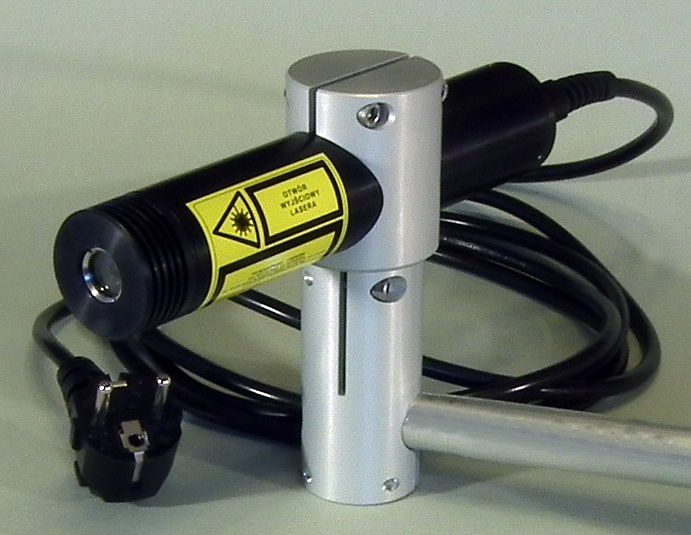

  • can be affixed to a Ø20 rod

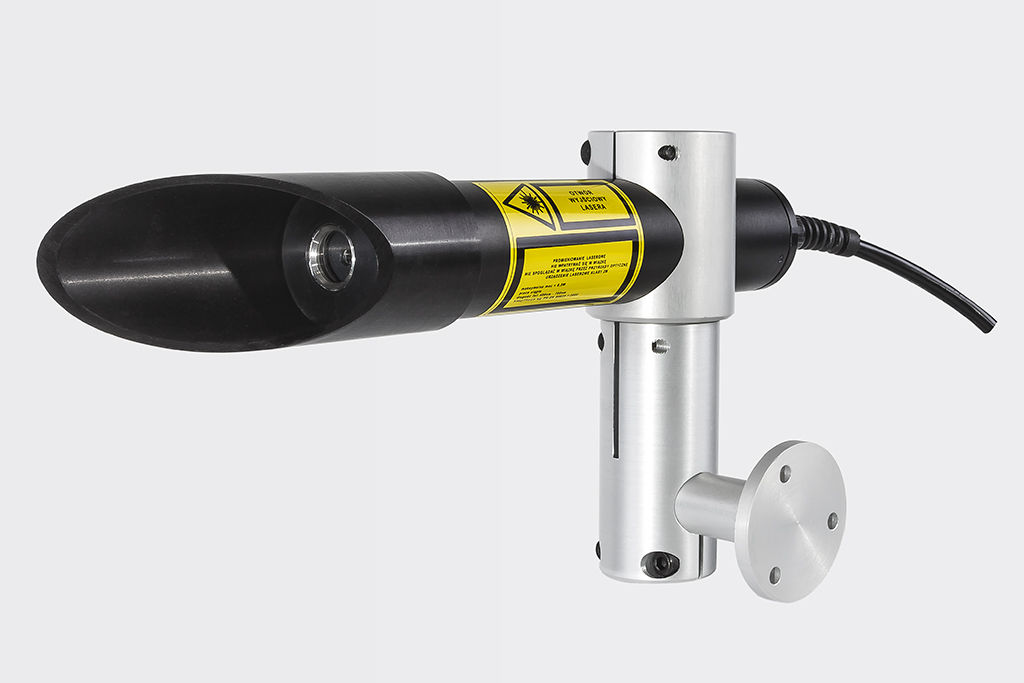

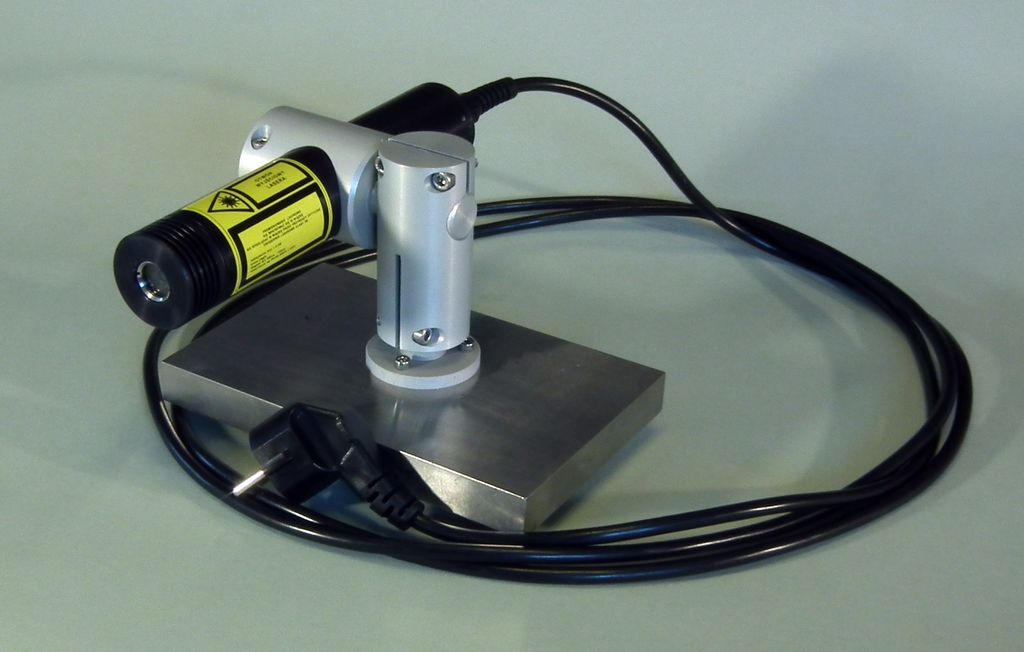

  • can be set on a surface using a mounting bracket. The bracket fixation requires three Ø5,2 openings with 120o spacing placed on a circle with a diameter of 36mm. The bracket bottom has a diameter of 50mm

- SPECIFICATION -
Optical power 15 [mW]
Wave lenght 635 [nm]
Avaliability 7-14 days
Warranty 24 months
Line generating angle ~80o
Safety class 2M
Laser beam color Red
Laser power supply 87-260 VAC
International Protection Rating IP65
